Project Description

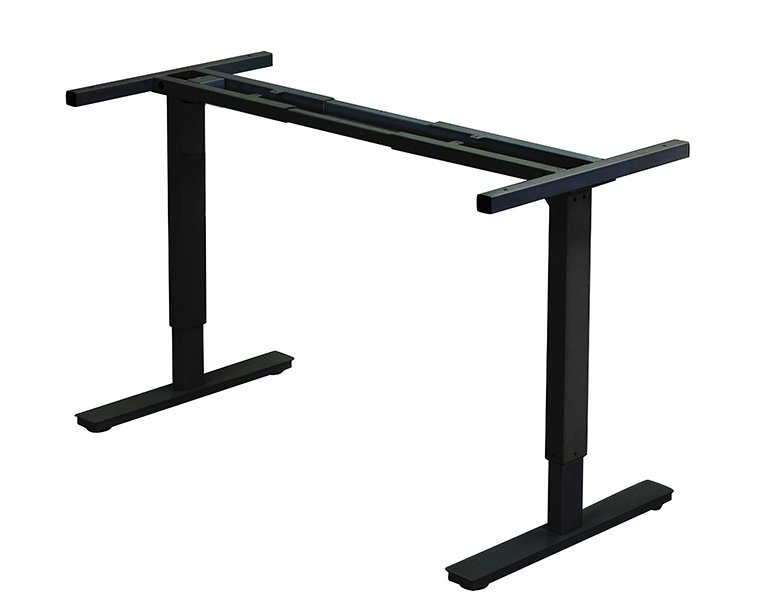

Model M200–MountinGear 2 motors 2 stages standing desk

Our 2 motors 2 stages standing desk frame is very competitive in Market. We have set our 2 motors 2 stage model price as low as other factories’ 1 motor desk frame. With 2 motors in the lifting mechanisom, the desk can generate more stable and smooth power to lift the desk compared to 1 motor desk. Also, 2 motors 2 stages model is much more quiet than 1 motor desk. It is a wise choise to choose our 2 motors 2 stages model rather than 1 motor desk.

This model contains all our latest functions in the control box, making the desk easy to operate. Below are some product features:

  • Strong package protection, keep parts safe even after long-time traveling;
  •  Easy to assemble with tools included;
  •  High quality and solid steel used, providing stable and long lasting use;
  •  Stainless material screws, very easy to use ;
  •  Soft Start / Stop Technology , no jerking and no jolting;
  • Latest lifting system used, easy to operate, smooth to lift;
  • Delicate powder coating finishing, endures more than 50,000 times lifting;
  • Functional Led Display hand set, 4 memory sets;

Technical Data:

Color white/grey/black
Column Segments 2 Column segments
Material solid steel tube
Steel thickness 1.8 mm
Max. Load on frame 120  kg
Speed up to (mm/s) 22-24 mm/s
Input (VAC) 110V-240V
Noise Control  <50 dba
Lowest postion (mm) 700mm(with desktop)
Hightest postion (mm) 1200mm(with desktop)
Telescopic beam range 1200 to 1800 mm
Table top range (1200 to 1800) x (700 to 850) mm
Operating temperature 0℃ – 40℃
Dutycycle 10%, max 2 min continuous use
Certificates TUV
MOTOR warranty 2 years
